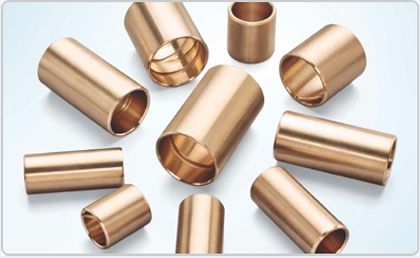

Spring Bushes
Item Code: AC-SB-1001
- Product Specification: TYPE :- Plain, Grooved
Length :- 25 mm To 100 mm, Dia (Outer) :- Max. 55 mm, Dia (Inner) :- 15 mm, Materials :- Al - Bronze (Self lubricated) / Zinc Bronze / Manganese Bronze, Finish :- Ground

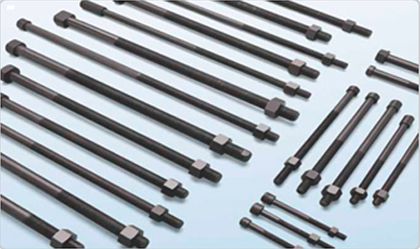

Central Bolts
Item Code: AC-CB-1001
- Product Specification: Type :- Round Head with Slots & Milled Head Hot and Cold both Head forming facilities are available., Length :- Min. - 75 mm Max.-450 mm, Dia :-, Min.-8 mm Max.-18 mm, Thread :- Metric,UNF/UNC or BSF/BSW, CUT & Rolled threads, Materials :- Thread length - Max. 75% of Total length, Surface Treatment :- Mild Steel,8.8 Grade,10.9 Grade(H.T. Materials are Hardened & tempered) Phosphating,Auto-Black & Zinc Plating Passivated.
Shackle Pin
Item Code: AC-SP-1001
- Product Specification: Length :- Min.-80 mm Max. - 250 mm, Dia :- Min.-20 mm Max.-45 mm, Material :- CK-45, SAE - 1541, 41Cr4., Heat -Treatment :- Case - hardened by Induction - hardening Process, Hardness Surface :- 62 HRC Max., Case-depth : 3 mm Max., Design :- All others features Viz. - Cotter pin Slot, Grease Slot, Tapping etc. According to customer's requirement., Fininsh :- Ground with Rust preventive oil film.

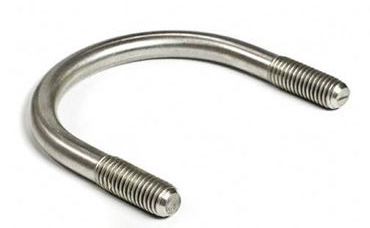

U-Bolts
Item Code: AC-UB-1001
- Product Specification: TYPE :- Flat,Half-Round,Full-round,Half-Round with Forged - Section, Full - Round with Forged - Section,Flat with Forged - Section., Stem Length :- Min. - 40 mm Max.-650 mm ,Dia - Min.-7mm Max.-30 mm, centre distance between stems - Min.-24 mm Max. - 130 mm, Thread :- Metric ,UNF/UNC or BSF/BSW Thread Length - Max upto 200 mm, Rolled threads. Thread Pitch - 1 mm To 3 mm, Materials :- M.S,SAE - 1015 ,EN-8,CK-45,SAE - 1541,41Cr4,SAE - 4140,Strength - 5.6 , 8.8,10.9, Surface Treatment :- Phosphating , Zinc Plating(Yellow, Blue & Green) Powder Coating (Black & red), Bending :- Cold & Hot both facilities are available.

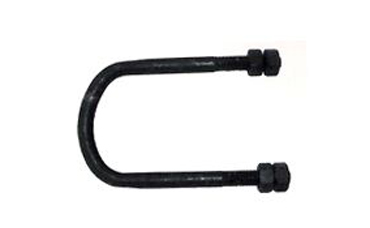

Half Round
Item Code: AC-UB-1002
- Product Specification: Front Spring U-Bolt
- Size : 5½" (CL) x 72 mm x 12 mm
- Shape : Half Round

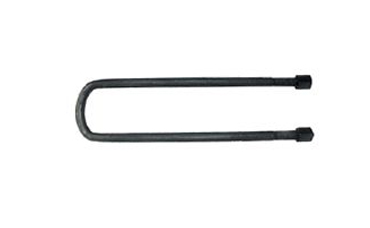

Half Round
Item Code: AC-UB-1003
- Product Specification: Rear Spring U-Bolt
- Size : 16" x 83 mm x 18 mm
- Shape : Half Round

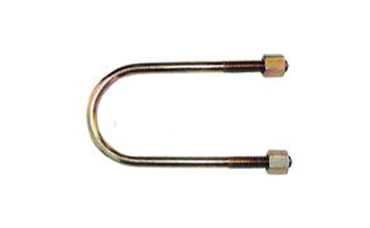

Full Round
Item Code: AC-UB-1004
- Product Specification: Front Spring U-Bolt
- Size : 6" (CL) x 65 mm x 9 mm
- Shape : Full Round

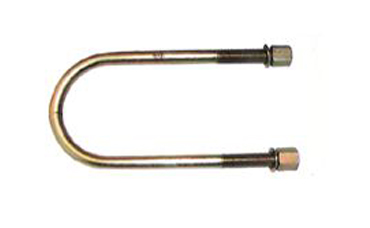

Full Round
Item Code: AC-UB-1005
- Product Specification: Front Spring U-Bolt
- Size : 8½" x 86 mm x 13 mm
- Shape : Full Round
